Updated figures

Figures 2, 3 and 5 from the article:
Timeseries of Polar Water Properties in Fram Strait
Jürgen Holfort and Edmond Hansen
GEOPHYSICAL RESEARCH LETTERS, VOL. 32, L19601, doi:10.1029/2005GL022957, 2005 have been updated with mooring data from 2004-2005. The small individual pictures are clickable for larger versions.

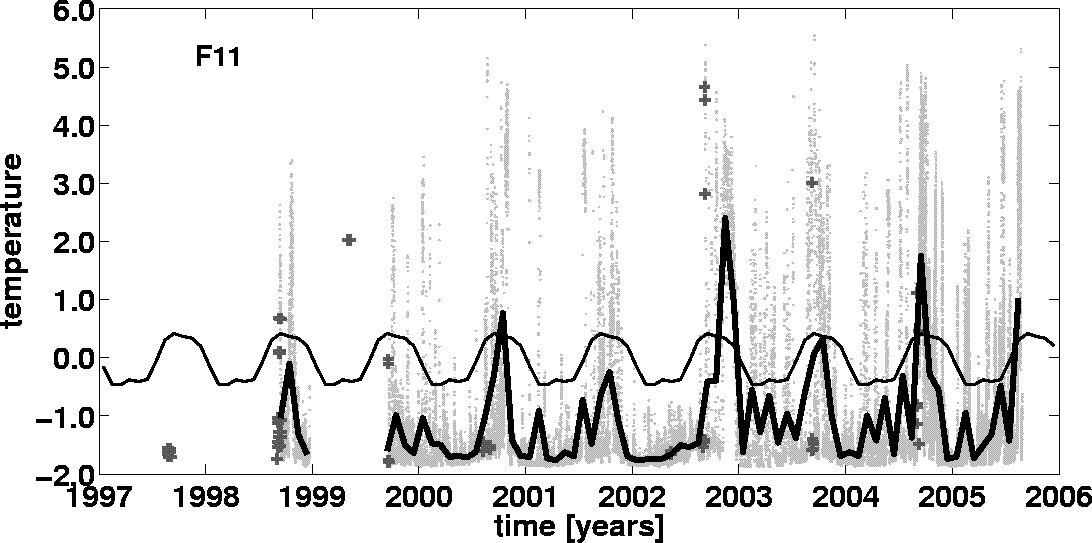

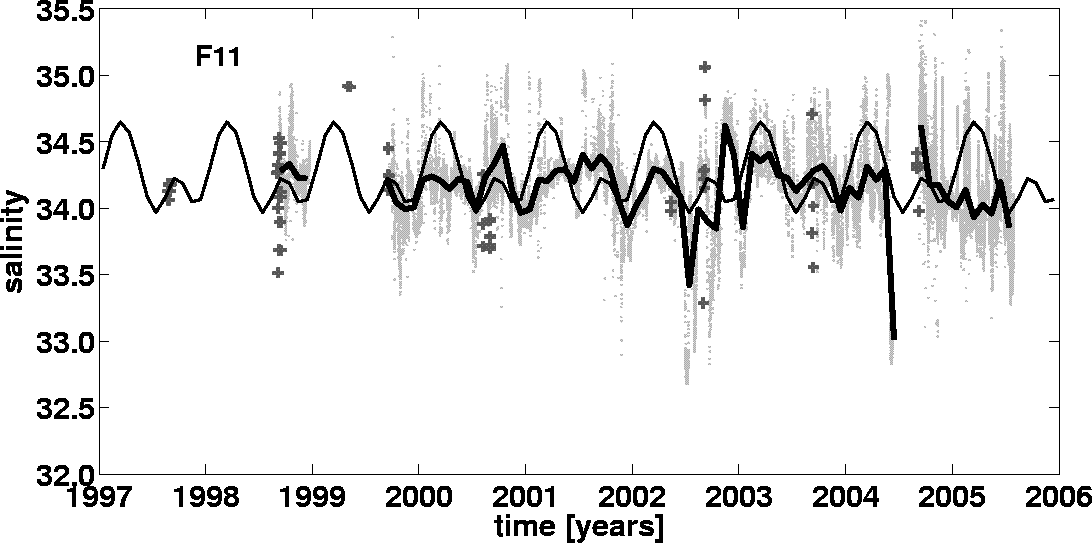

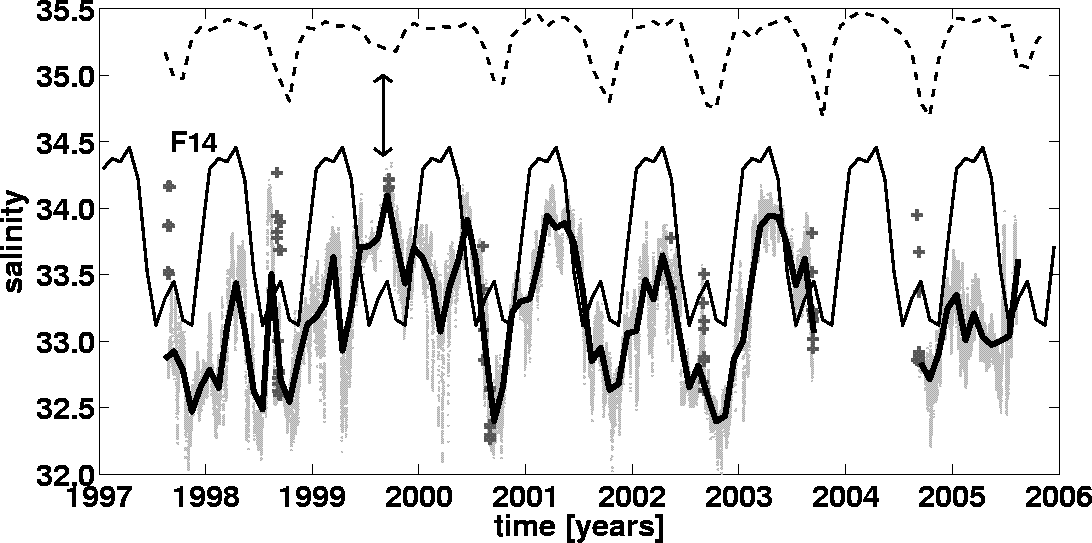

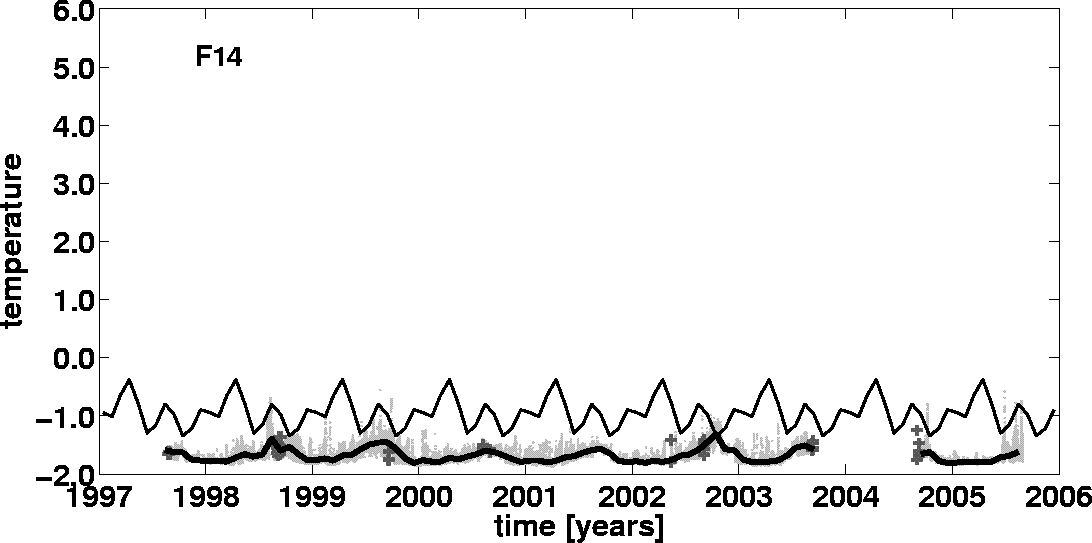

Figure:2 Time series of temperature (upper) and salinity (lower) at mooring F14 (left) and F11 (right) at depths 45-74 dbar. Markers in light grey are unfiltered hourly data, the thick black line are the monthly means. The thin black lines show the temperature and salinity at 50m of the nearest point of the WOA. Dark grey crosses are the mean values from CTD casts in the region 78.7-79.2°N and ±1° of longitude around the mooring. The figure of the salinity at F14 also shows the sea ice cover (from SSMI data [Cavalieri et al.(2005)]) in the region 15°W-0°E, 79°N-8°2N as dashed line, scaled so that 0-100% cover corresponds to 34.5-35.5 in salinity. The 1999 anomaly is marked with arrows.

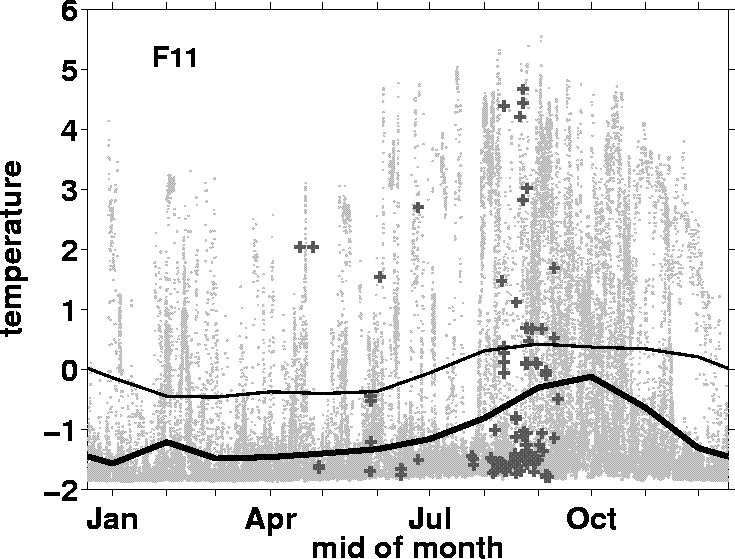

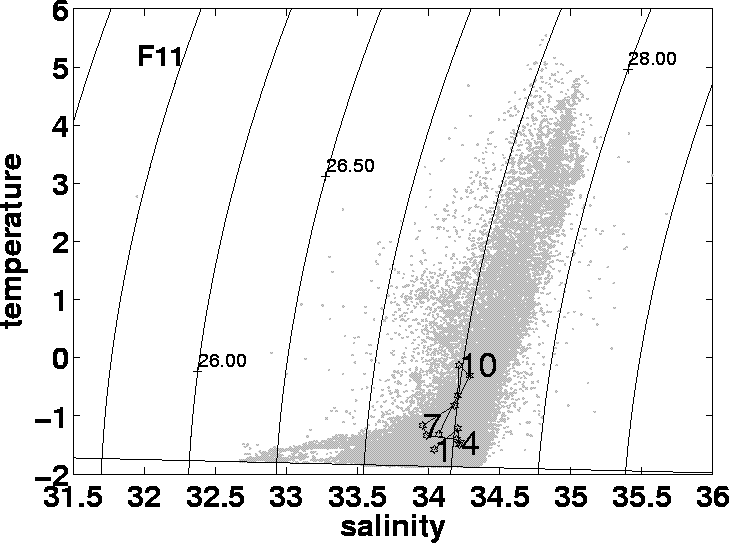

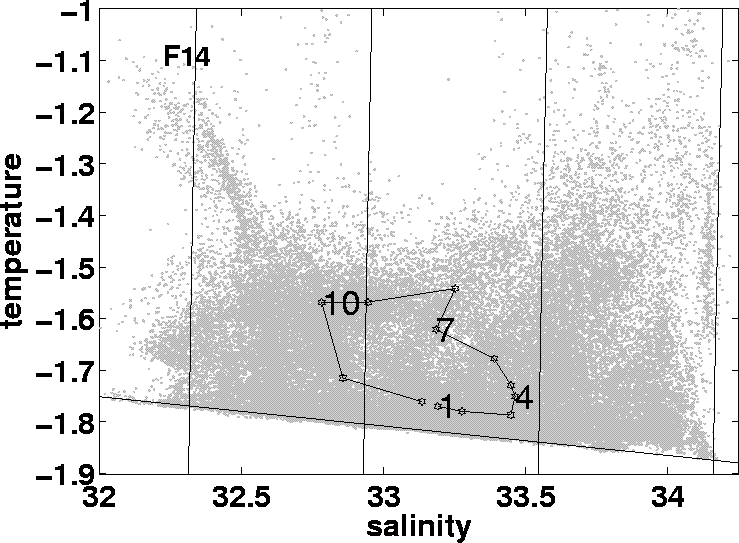

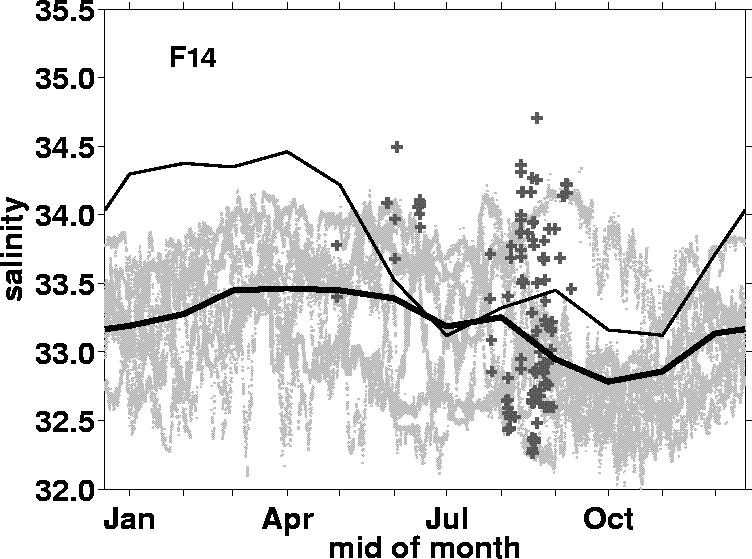

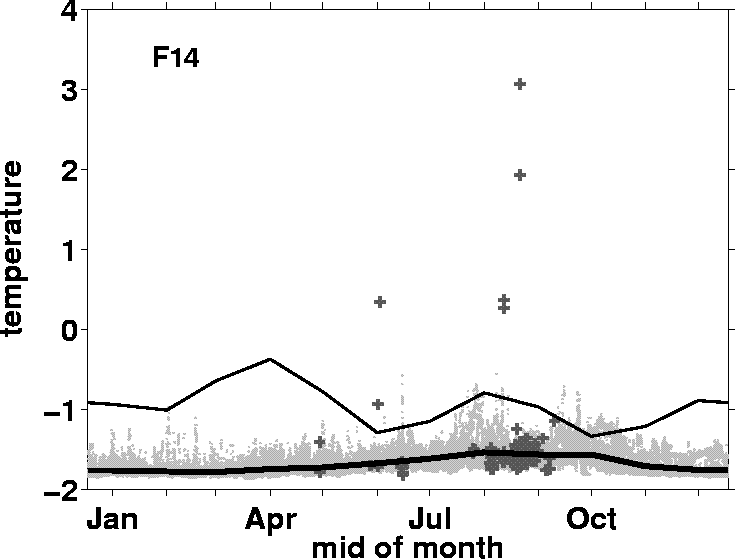

Figure:3 Average seasonal cycle of temperature (left) and salinity (middle) at mooring F14 (upper) and F11 (lower) at depths 45-74 dbar. Markers in light grey are unfiltered hourly data, the thick black line are the monthly means. The thin black lines show the temperature and salinity at 50m of the nearest point of the WOA. Dark grey crosses are the mean values from CTD casts in the region 78.7-79.2°N and ±1° of longitude around the mooring. Temperature-Salinity diagrams (right) at mooring F14 and F11 with overlying σΘ lines ( ΔσΘ=0.5kgm3) . Markers in light grey are unfiltered hourly data, the black line gives the monthly mean values with the numbers denoting the individual months.

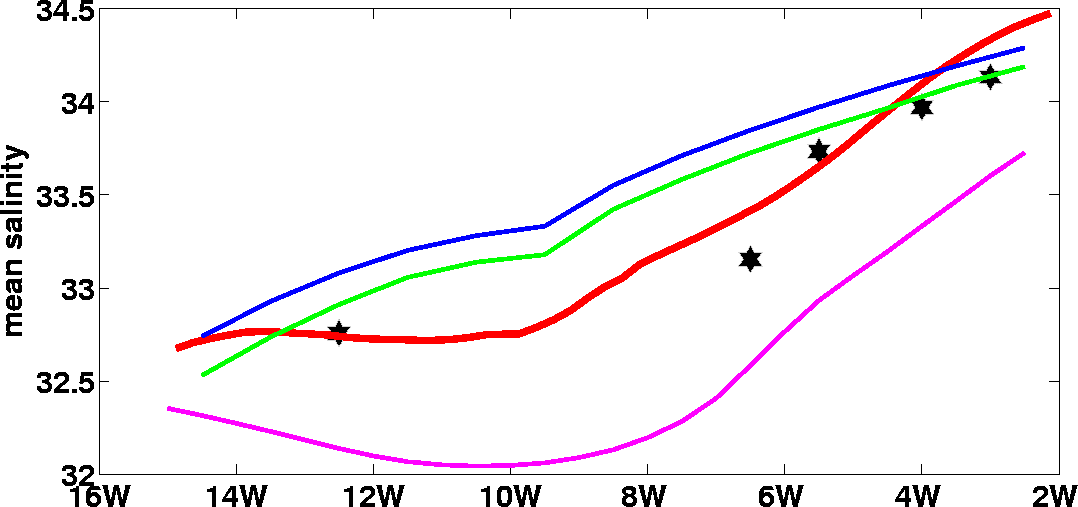

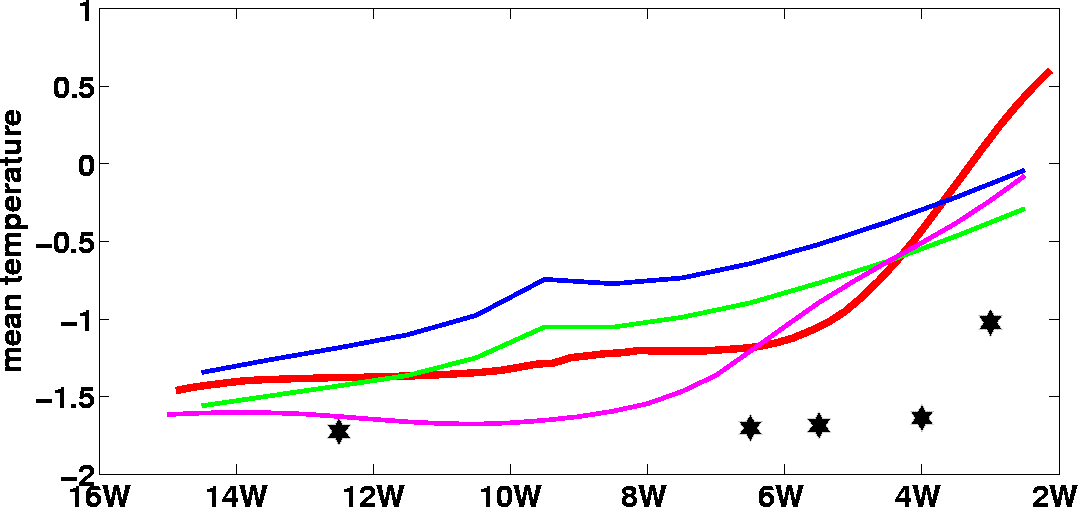

Figure:5 The long term mean temperature (left) and salinity (right) as a function of longitude. Stars are the measurements from the moorings. Lines show annual mean values from different climatologies (red line is the WOA ¼°, blue the 1° WOA, grenn the PHC and a magenta line the WGHC.
